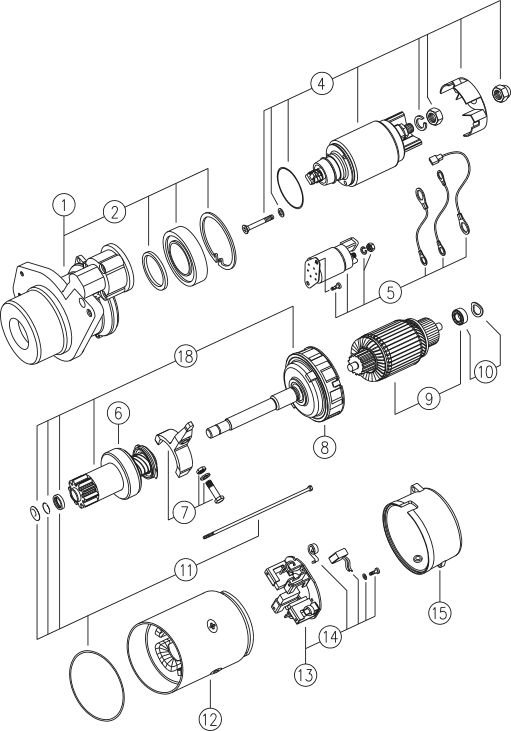

Spare parts / Letrika P/N: 11.131.839 AZF4691 12V 4,2kW - MAHLE P/N: MS 101
Pos.Letrika P/NMAHLE P/NDescription
116.283.464MSX 16Drive end bracket
216.907.383MSX 481Bearing
416.915.352MSX 1030Switch
616.902.036MSX 164Pinion with clutch
716.908.335MSX 192Lever
816.907.091MSX 119Reduction gear
916.908.339MSX 786Armature
1016.908.340MSX 305Bearing
1116.907.092MSX 263Fixing set
1216.282.089MSX 497Stator
1316.908.336MSX 1225Brush holder
1416.908.337MSX 79Set of brushes
1516.283.635MSX 105Rear-end bracket
1816.917.377Gear with clutch
16.283.464 MSX 16 Drive end bracket16.907.383 MSX 481 Bearing16.915.352 MSX 1030 Switch16.902.036 MSX 164 Pinion with clutch16.908.335 MSX 192 Lever16.907.091 MSX 119 Reduction gear16.908.339 MSX 786 Armature16.908.340 MSX 305 Bearing16.907.092 MSX 263 Fixing set16.282.089 MSX 497 Stator16.908.336 MSX 1225 Brush holder16.908.337 MSX 79 Set of brushes16.283.635 MSX 105 Rear-end bracket16.917.377 Gear with clutch
